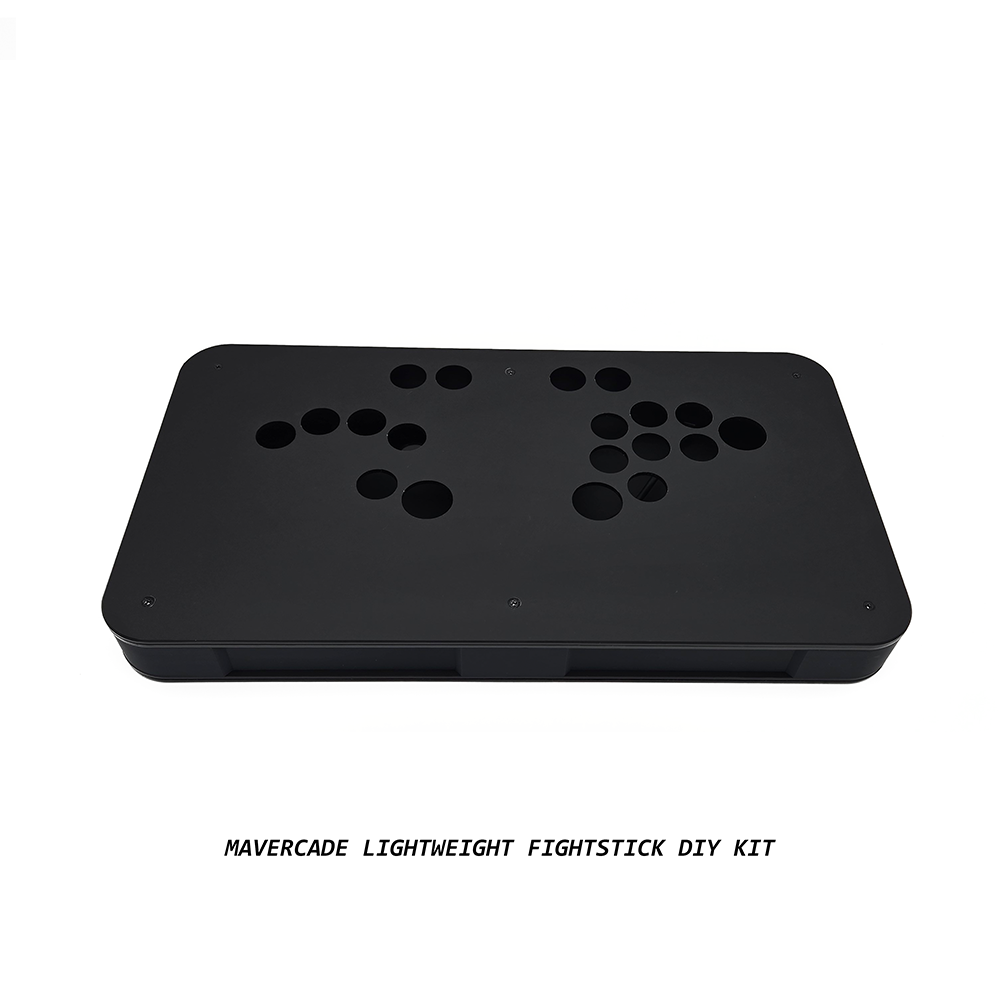

Mavercade Lightweight Fightstick Enclosure Kit - Matte Black Low Profile
A DIY Low Profile kit to for your all button controller needs
- Acrylic sheets make up the top and bottom, supported by a 3D printed PLA+ frame
- Outer Dimensions: 17" L x 9.25" W x 1.6" H
- Weight: 3.8 lbs / 1.7 kg
- Frame height/internal clearance: ~30mm-32mm

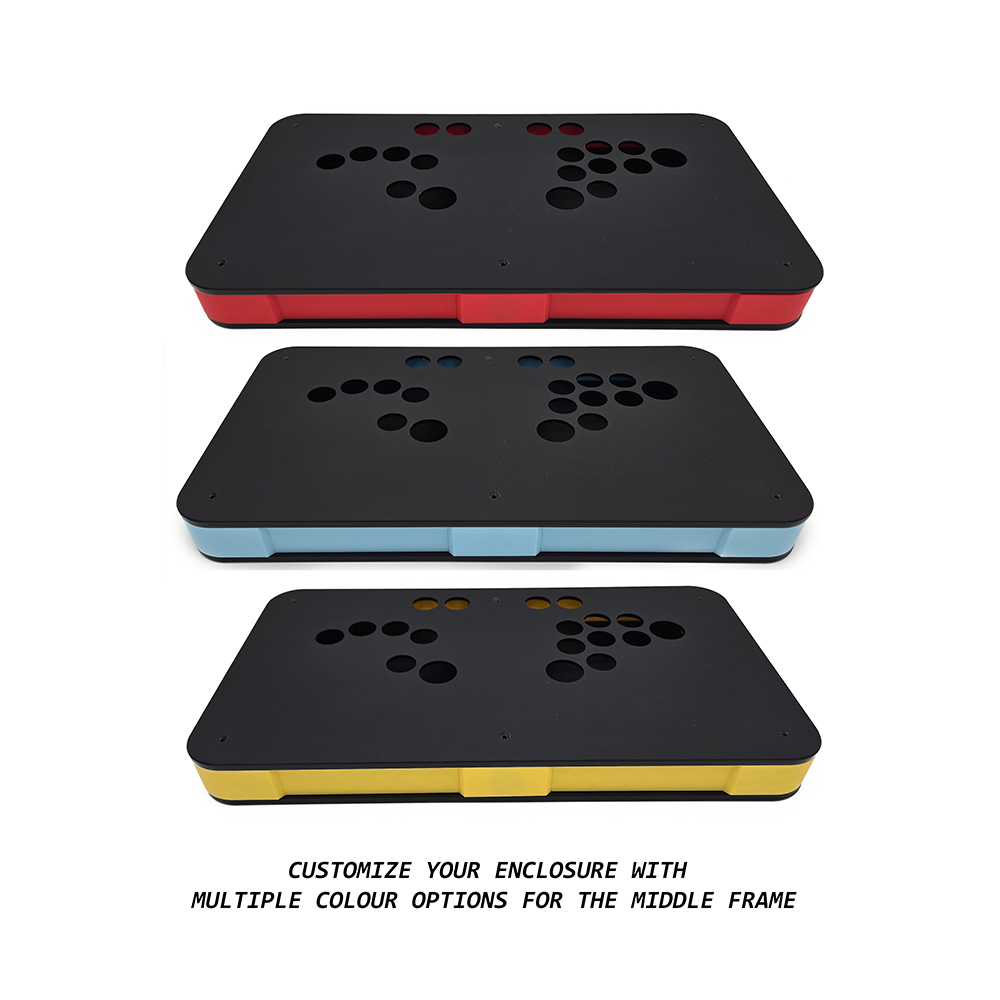

- Multiple colour options for the frame

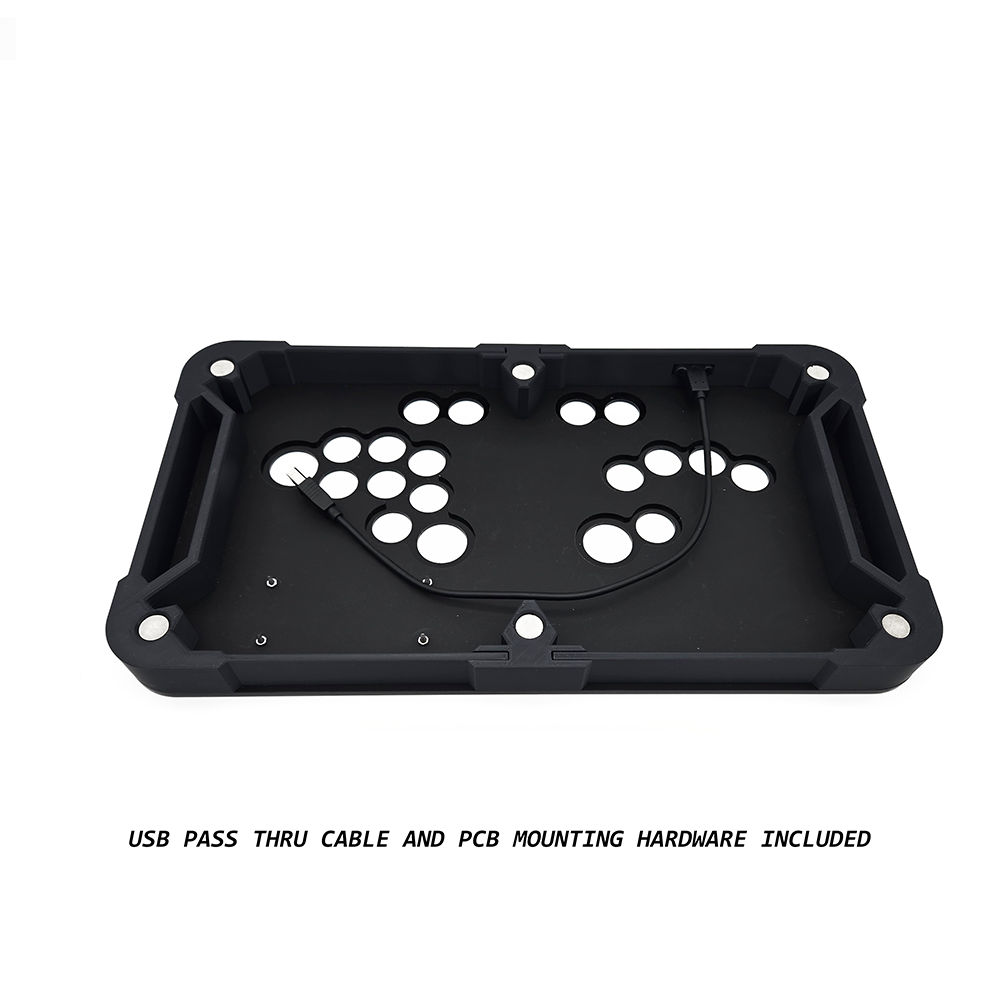

- 1x panel mounted USB C to USB B pass thru cable to connect to your GP2040-CE or Brook board - included
- Mounting holes and screws included for GP2040-CE/Brook PCB
- Countersunk screw holes for all facing screws

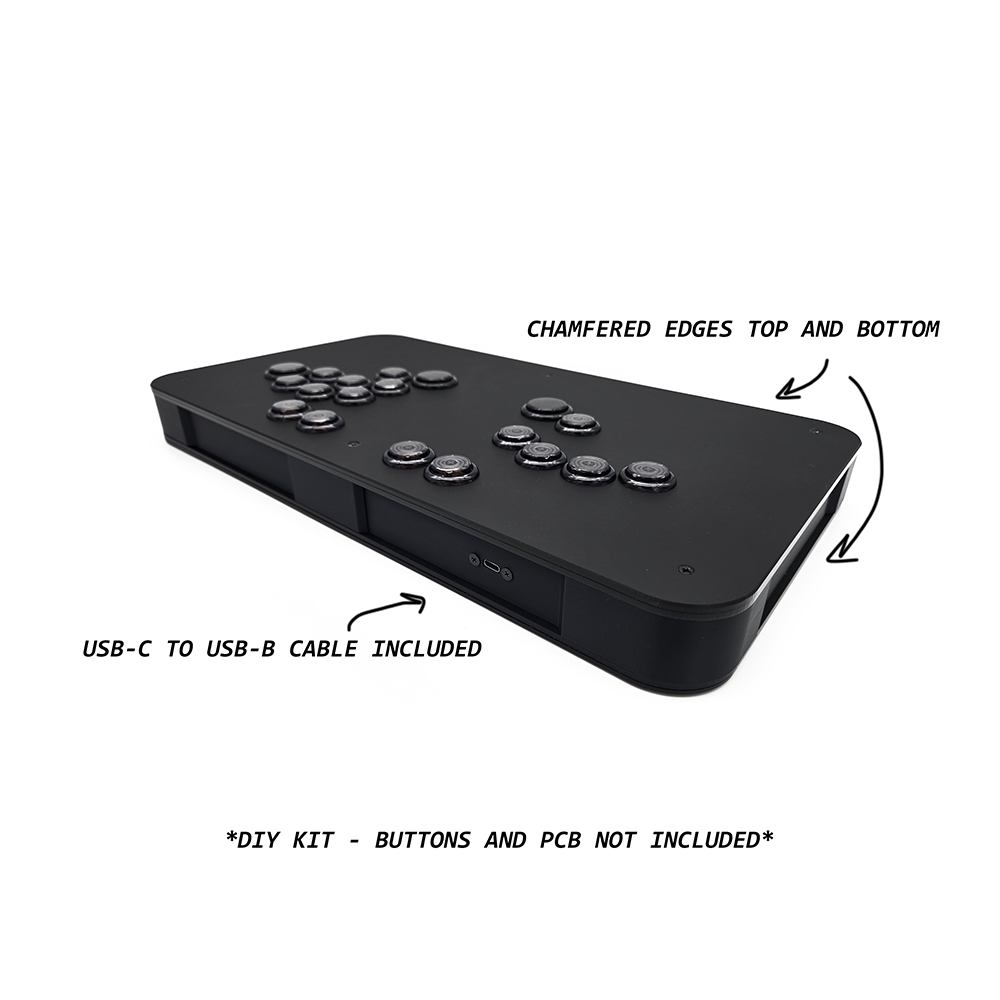

- Chamfered edges on top and bottom panels. No sharp edges when holding the enclosure

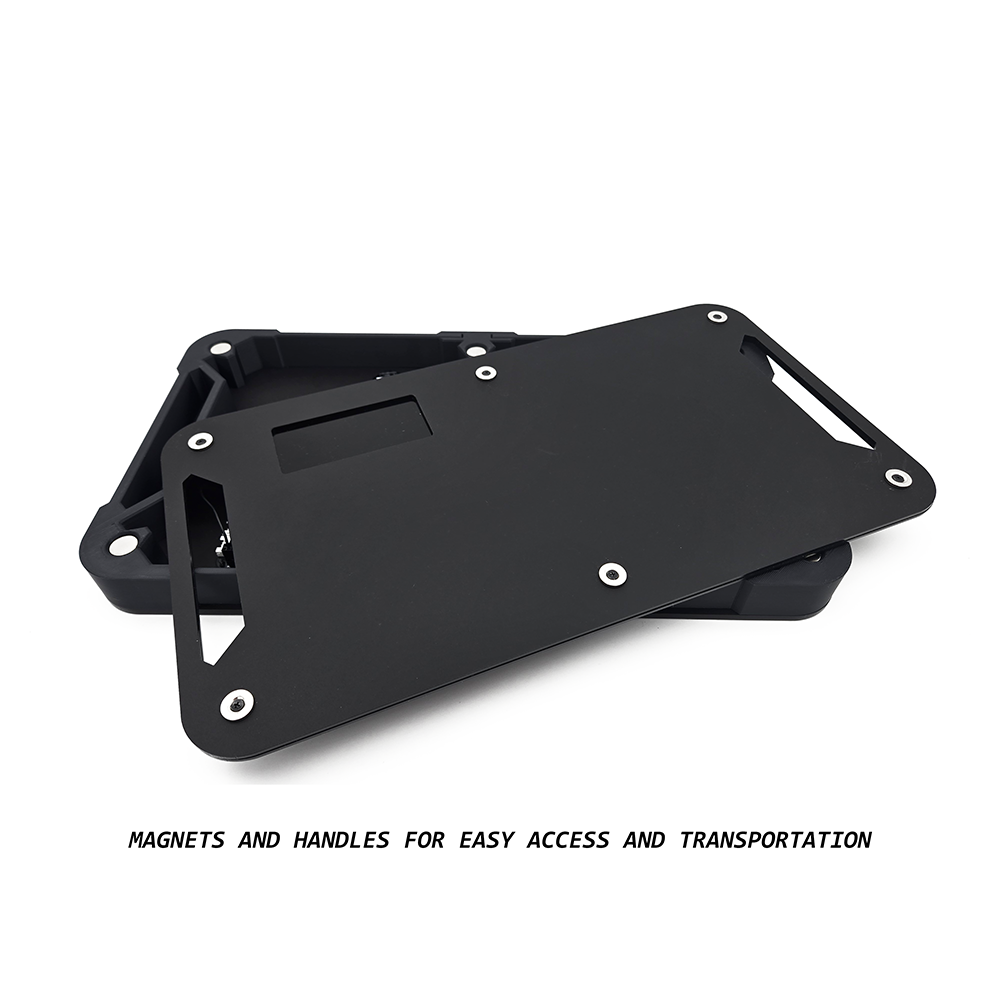

- Magnets embedded into the frame and attached to the bottom panels for easy access to internals
- Foam pad on bottom and handles for easy carrying
- Supports low profile buttons such as SiTong LPs, Sanwa CAUs, and OSBMX buttons. Or typical sized arcade buttons with bent pins.
- Some Assembly Required
What's included:
- Acrylic panels
- PLA+ frame
- USB-C to USB-B pass thru cable
- Magnets, screws, and mounts for PCB
- Foam bottom
What you need:
- USB-C cable to connect to your console or PC
- GP2040-CE or Brook PCB
- Arcade buttons, preferably low profile for easy installation (available in store soon!)
- Wiring kit for Arcade buttons and option buttons (available in store soon!)
